Handheld Laser Marking Machine - ZDJG-SCDB-01
Core Features
- ✅ Compact and flexible overall size, easy to carry, suitable for frequent processing location changes. Can be placed on desktop for home use, or used for customized gift engraving or souvenir production in scenic spots/markets
- ✅ Excellent marking effect, capable of marking various fine and complex patterns as required on extremely small surfaces, ideal for prototyping or logo engraving on small crafts
- ✅ High electro-optical conversion rate, no power coupling loss, no consumables, maintenance-free operation. Can replace inkjet coding with permanent, wear-resistant laser etching, environmentally friendly and pollution-free. Affordable with low investment cost and high cost performance
Applicable to: Electronic components, hardware tools, electrical products, daily consumer goods, 3C electronics, craft gifts, precision instruments, wearable jewelry, medical devices, high and low voltage electrical appliances, sanitary ware industry, battery industry, IT industry and other fields
📞 Consult Now (400-888-9999)Technical Parameters
| Model | ZDJG-SCDB-01-20W/30W/50W |
|---|---|
| Average Output Power | 20W/30W/50W |
| Laser Wavelength (nm) | 1064nm |
| Galvo Marking Speed | ≤7000mm/s |
| Marking Area | 105mm×105mm (70mm×70mm, 140mm×140mm, 170mm×170mm optional) |
| Pulse Repetition Frequency | 20-80kHz |
| Standard Marking Line Width | 0.06mm (depending on material) |
| Minimum Character Height | 0.15mm |
| Lifting Mechanism | Manual, nominal stroke: 300mm |
| Marking Software | Compatible with common image formats (bmp, jpg, png) and vector graphics (ai, dxf, dst, plt) |
| Communication Interface | USB interface; RS232 serial port; Network port |
| Power Supply | AC220V/50Hz, voltage fluctuation range ±5%. A voltage stabilizer is required if exceeding the range |
*Note: Products are constantly updated, the appearance is subject to the actual product, the pictures are for reference only, the configuration parameters of specific models are different, subject to the agreed contract. If you have special requirements for the machine, we can customize it specially, welcome to call 400-888-9999 to discuss.
Product Advantages
Easy Operation
No professional operator required, master in 30 minutes
High Efficiency
3-5 times faster than traditional marking methods
Precise Marking
No deformation, clear and permanent marking
Lower Cost
No consumables, low maintenance cost

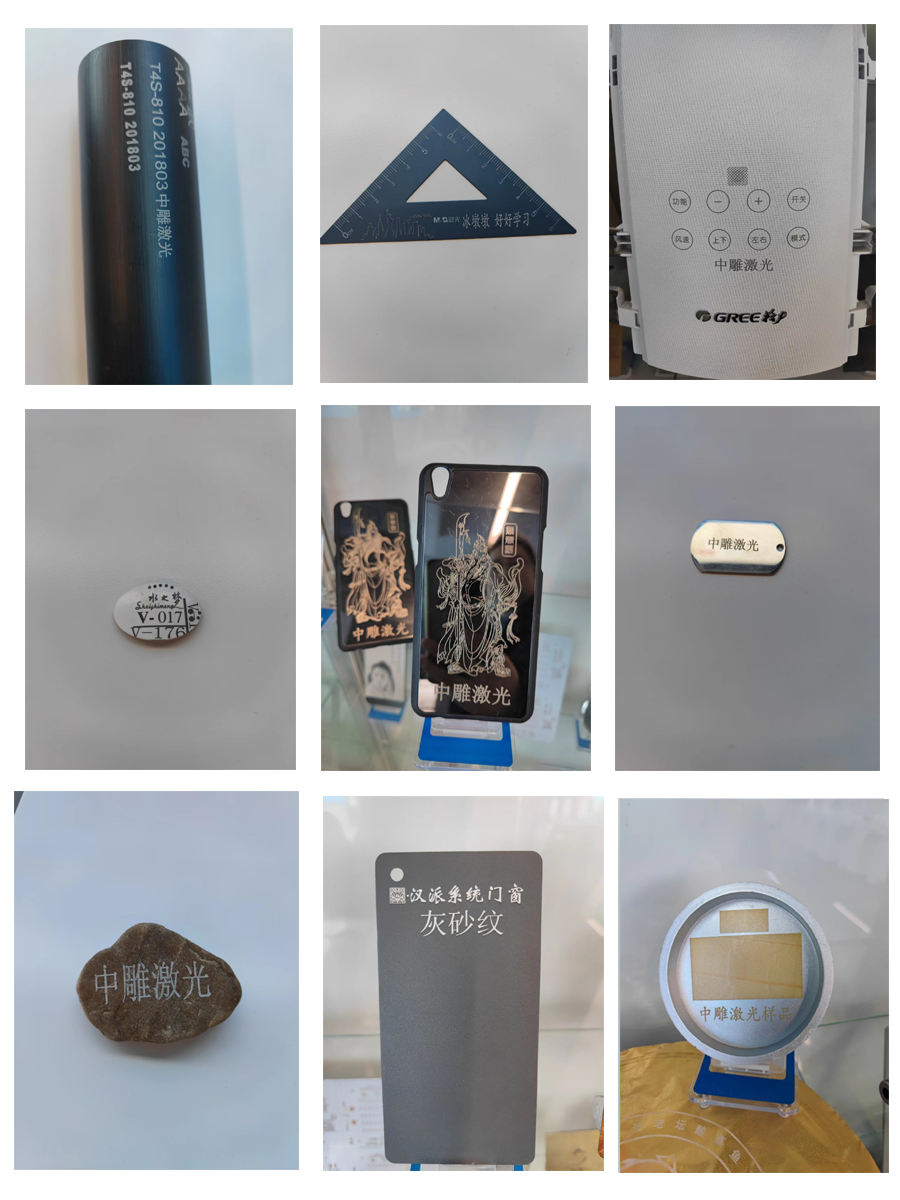

Sample Display
Laser Marking Sample
