Integrated Laser Welding Machine - ZDJG-YTHJ-02
Core Features
- ✅ Integrated structure design, smaller volume, easy to move.
- ✅ Easy to learn, no professional welding skills required, simple operation
- ✅ Simple supporting requirements, less consumables, reduce usage cost
- ✅ Small welding deformation, smooth and beautiful weld seams, high flexibility
- ✅ Widely customizable fiber cable length, supports long-distance welding
Applicable to: Welding of stainless steel, carbon steel, aluminum, copper and other metals as well as aluminum alloy
📞 Consult Now (400-888-9999)Technical Parameters
| Model | ZDJG-YTHJ-1000W | ZDJG-YTHJ-1500W | ZDJG-YTHJ-2000W |
|---|---|---|---|
| Max Laser Power | 1000W | 1500W | 2000W |
| Penetration (Stainless Steel, 1m/min) | 2.68mm | 3.59mm | 4.57mm |
| Penetration (Carbon Steel, 1m/min) | 2.06mm | 2.77mm | 3.59mm |
| Penetration (Aluminum Alloy, 1m/min) | 2mm | 3mm | 4mm |
| Automatic Wire Feeding | φ0.8-1.2 welding wire | φ0.8-1.6 welding wire | φ0.8-1.6 welding wire |
| Total Power Consumption | ≤3KW | ≤4.5KW | ≤6KW |
| Cooling Method | Built-in water cooling | Built-in water cooling | Built-in water cooling |
| Power Requirement | 220V | 220V or 380V | 380V |
| Argon/Nitrogen Protection (Customer Prepared) | 20 L/min | 20 L/min | 20 L/min |
| Welding Machine Size | 0.408×0.89×0.67m | 0.408×0.89×0.67m | 0.408×0.89×0.67m |
| Welding Machine Weight | ≈128KG | ≈128KG | ≈128KG |
| Wire Feeder Size | 0.23×0.6×0.42m | 0.23×0.6×0.42m | 0.23×0.6×0.42m |
| Wire Feeder Weight | ≈19KG | ≈19KG | ≈19KG |
*Note: Products are constantly updated, the appearance is subject to the actual product, the pictures are for reference only, the configuration parameters of specific models are different, subject to the agreed contract. If you have special requirements for the machine, we can customize it specially, welcome to call 400-888-9999 to discuss.
Product Advantages
Easy Operation
No professional welder required, master in 30 minutes
High Efficiency
3-5 times faster than traditional welding
Beautiful Weld Seams
No deformation, no porosity, no grinding needed
Lower Cost
Less consumables, low maintenance cost
Sample Display

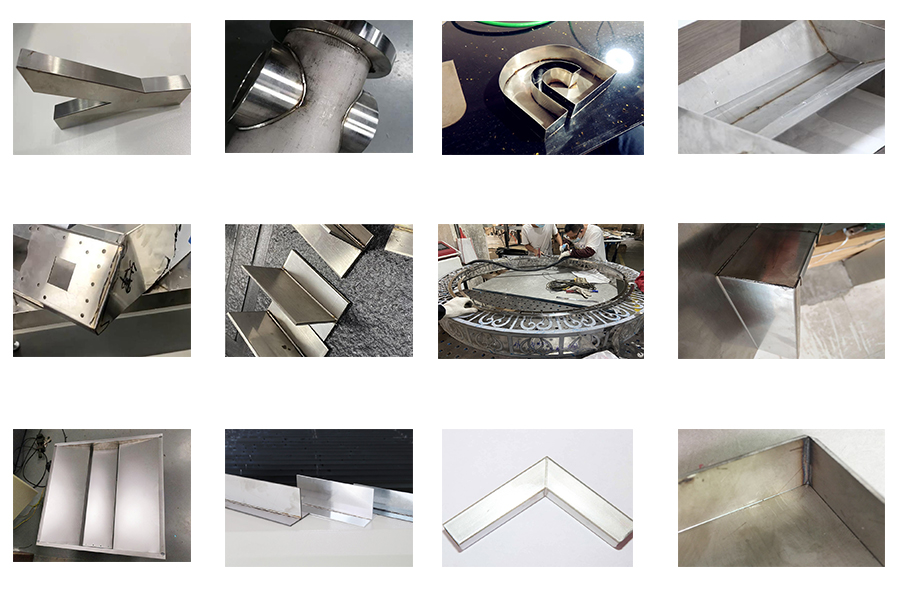

Stainless Steel Plate Welding Sample
