Fiber Transmission Laser Welding Machine - ZDJG-GQHJ-01
Core Features
- ✅ Real-time processing feedback control performance and waveform control function, which can accurately control the energy of each laser spot, effectively ensuring uniform and consistent welding results
- ✅ Unique optical system design with stable optical performance, uniform energy distribution of welding spot, and optimal light spot required for welding characteristics
- ✅ Combined design of galvanometer scanning head, suitable for various complex weld seams, and can realize spot welding and seam welding within the processing range
- ✅ Laser output can realize energy beam splitting and time beam splitting, up to 6 channels of beam splitting
- ✅ Ramp up and ramp down function, the overlapping part at the start and end of seam welding is controllable
- ✅ Optional robot, boom, CCD camera monitoring system to realize special welding, precise positioning for accurate alignment and real-time welding monitoring
- ✅ Customizable special automatic fixtures to realize mass production of products, which can work with assembly lines or be used independently
- ✅ Can realize fully automatic welding or semi-automatic welding according to user needs, simple operation, greatly saving user labor costs
Applicable to: Mobile communication, electronic components, glasses & clocks, jewelry & accessories, precision instruments, medical devices, craft gifts, auto parts, hardware and other industries
📞 Consult Now (400-888-9999)Technical Parameters
| Equipment Model | ZDJG-GQHJ-300W | ZDJG-GQHJ-400W | ZDJG-GQHJ-500W | ZDJG-GQHJ-600W |
|---|---|---|---|---|
| Laser Power | 300W | 400W | 500W | 600W |
| Laser Wavelength | — | 1064nm | — | — |
| Single Pulse Energy | — | 100J | — | — |
| Single Pulse Width | — | 0.1~20ms | — | — |
| Welding Depth | 2mm/Stainless Steel | — | 3mm/Stainless Steel | — |
| Pulse Frequency | — | 1~100Hz | — | — |
| Laser Peak Power | — | ≤10kW | — | — |
| Power Requirement | — | AC380V/50Hz | — | — |
| Cooling System | — | Water Cooling | — | — |
| Fiber Port | — | 1~6 (Optional) | — | — |
| Optional Workbench | 2-axis, 3-axis, 4-axis linkage workbench; Galvanometer workbench; 5-axis or gantry workbench; Robot, etc. | |||
*Note: Products are constantly updated, the appearance is subject to the actual product, the pictures are for reference only, the configuration parameters of specific models are different, subject to the agreed contract. If you have special requirements for the machine, we can customize it specially, welcome to call 400-888-9999 to discuss.
Product Advantages
Easy Operation
No professional welder required, master in 30 minutes
High Efficiency
3-5 times faster than traditional welding
Beautiful Weld Seams
No deformation, no porosity, no grinding needed
Lower Cost
Less consumables, low maintenance cost
Sample Display

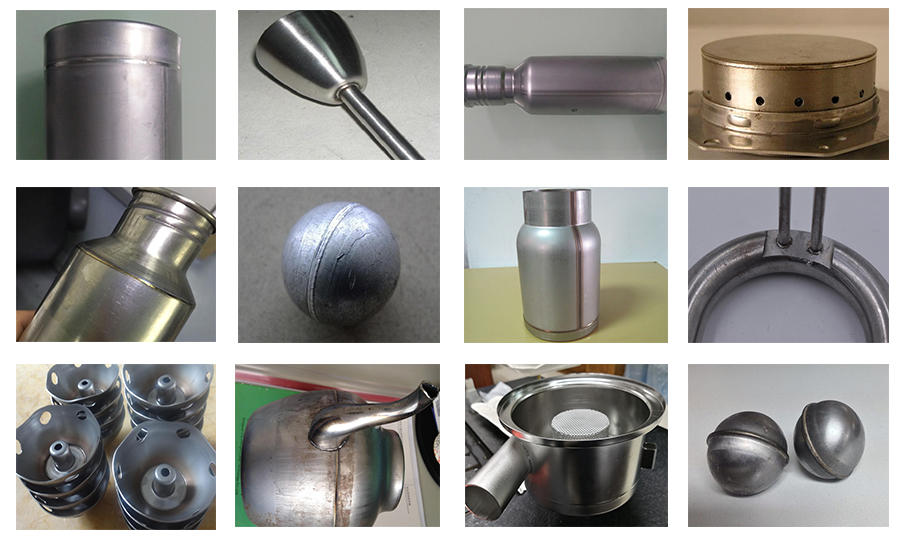

Stainless Steel Plate Welding Sample
