Continuous Fiber Laser Welding Machine - ZDJG-LXHJ-01
Core Features
- ✅ High equipment reliability, capable of 24/7 continuous stable processing, especially suitable for enterprises with three-shift system long-time operation
- ✅ Excellent beam quality with extremely fine welding spots, modular design for easy function expansion. Capable of spot welding, butt welding, lap welding, seal welding, etc.
- ✅ 4-axis linkage control system customized for laser welding, stable performance, customizable, detachable and graftable fixtures for quick docking with customer production lines
- ✅ Can weld arbitrary planar trajectories such as points, straight lines, circles, ellipses, squares or any shape composed of straight lines and arcs; with automatic focus adjustment and rotation functions, capable of welding 3D spatial arbitrary shape products
- ✅ Freely selectable welding head structure frame to fully meet customers' differential requirements for cost and space; non-contact long-distance welding for parts that are difficult to access with traditional welding
- ✅ Adopts industrial computer for human-machine interaction, simple and reliable operation, easy control, low operating cost, few consumables, simple daily maintenance, reducing offline debugging costs
Applicable to: Carbon steel, stainless steel, aluminum, copper, nickel, titanium, silver, gold, platinum, alloys and other materials; batteries, consumer electronics, solar panels, auto parts, hardware kitchenware, medical devices, sensors, molds, jewelry, glasses, stainless steel doors and windows and other industries
📞 Consult Now (400-888-9999)Technical Parameters
| Model | ZDJG-LXHJ-500W | ZDJG-LXHJ-1000W | ZDJG-LXHJ-1500W | ZDJG-LXHJ-2000W | ZDJG-LXHJ-3000W | ZDJG-LXHJ-4000W | ZDJG-LXHJ-6000W |
|---|---|---|---|---|---|---|---|
| Laser Power | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W |
| Working Mode | Continuous or Short Continuous | ||||||
| Laser Wavelength | 1070nm~1080nm | 1080nm+5% | |||||
| Laser Stability | ≤±2% | ||||||
| Laser Output Mode | Direct Output/Oscillation/Oscillation + Automatic Wire Feeding | ||||||
| Fiber Core Diameter | 25um~200um | ||||||
| Spot Size | φ0.05~3mm | ||||||
| Positioning Method | Red Light + CCD Camera Monitoring System | ||||||
| Recommended Welding Depth | 250mm/300mm | ||||||
| Fiber Length | 10m (Customizable) | ||||||
| Equipment Power Consumption | ≤5KW | ≤7KW | ≤8.5KW | ≤12KW | ≤16KW | ≤19KW | ≤28KW |
| Laser Output Focal Length | 80mm/100mm/120mm/200mm | ||||||
| Laser Cooling | Water Cooling | ||||||
| Power Requirement | 380V±10% 50Hz | ||||||
| Control System | CNC or PLC | ||||||
| Shielding Gas | Air/Nitrogen or Argon | ||||||
| Working Temperature | 10-40℃ | ||||||
| Beam Splitting Mode | (Time Beam Splitting or Energy Beam Splitting) Max 4 Outputs | ||||||
| Welding Materials | Stainless steel, carbon steel, iron, mold steel, aluminum, brass, red copper, nickel and other metal materials | ||||||
*Note: Products are constantly updated, the appearance is subject to the actual product, the pictures are for reference only, the configuration parameters of specific models are different, subject to the agreed contract. If you have special requirements for the machine, we can customize it specially, welcome to call 400-888-9999 to discuss.
Product Advantages
Easy Operation
No professional welder required, master in 30 minutes
High Efficiency
3-5 times faster than traditional welding
Beautiful Weld Seams
No deformation, no porosity, no grinding needed
Lower Cost
Less consumables, low maintenance cost

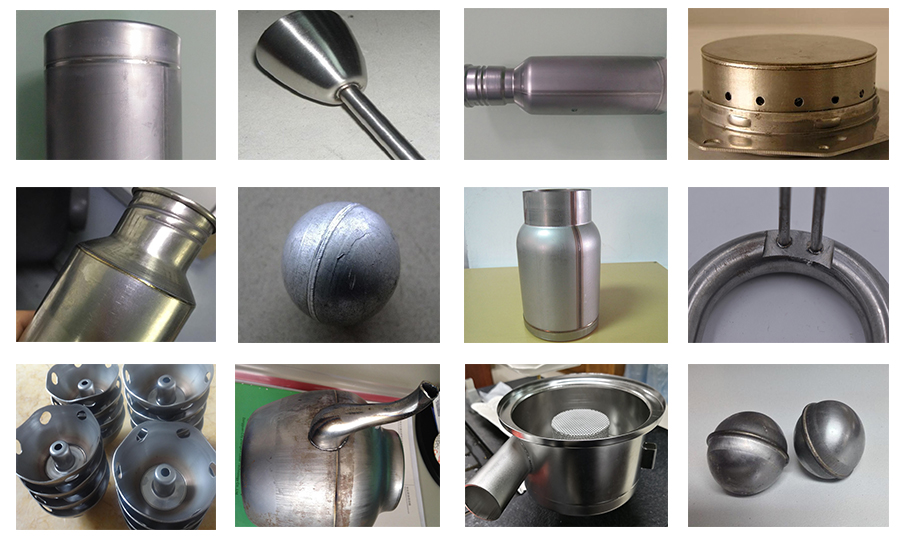

Sample Display
Stainless Steel Plate Welding Sample
